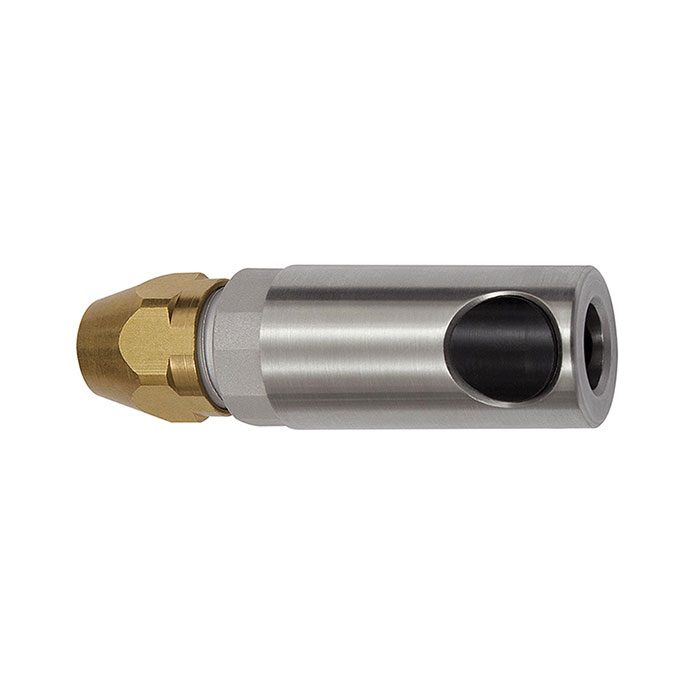

RIEGLER Pushbutton safety coupling I.D. 6, ISO 6150 C, Hose 10x8
Type number: 406.33-ES
EAN: 4047322566957
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Druckknopf-Sicherheitskupplung NW 6 ISO 6150 C, Edelstahl, Schlauchanschluss 10x8, Betriebsdr. max. 12 bar, Temp. -20°C bis 200°C
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 12 bar |
| Flow rate | 1150 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Messing |
| Button | Stainless steel |
| SW | 20 mm |
| NW | 6 |
| Length | 62 mm |
| Connection | Hose connection 10x8 |
| Connector profile | gemäß ISO 6150 C |
| Class name | PLUS |
