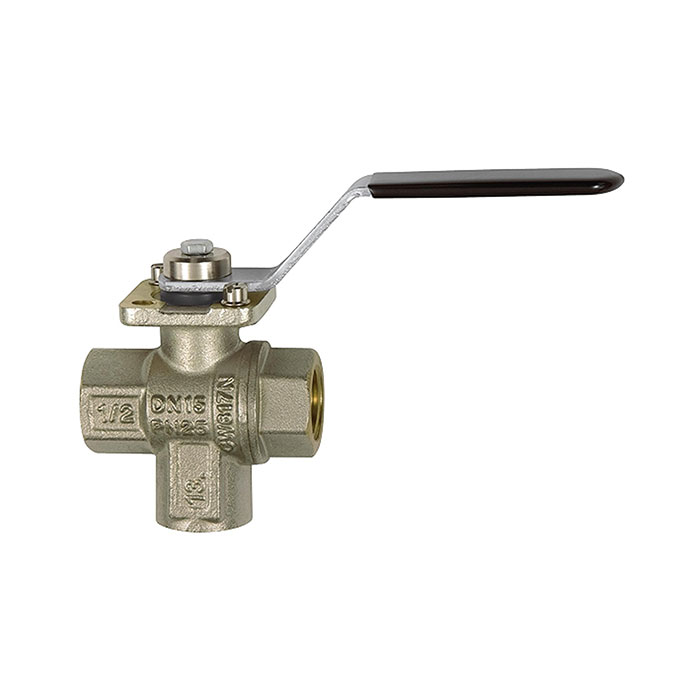

RIEGLER 3-way ball valve, nickel-plated brass, L-hole, Rp 1/4
Typennummer: 1085 A
EAN: 4047322504621
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3-way ball valve, MS nickel-plated, bottom connection, L-bore, Rp 1/4, DN 8, operating temperature -15 °C to 120 °C, PN max. 25 bar
| Housing | Nickel-plated brass (CW617N) |
| Ball | Nickel-plated brass (CW617N) |
| Ball seal | PTFE |
| Spindle seal | PTFE / FKM |
| Hand lever | Steel, with plastic coating |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 120 °C |
| Thread | Rp 1/4 |
| DN | 8 |
| SW | 22 mm |
| PN | 25 bar |
| Thread standard | Rp-Gewinde nach ISO 7-1 |
| A | 115 mm |
| B | 60 mm |
| L | 52 mm |
| E | 11 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| H1 | 28.5 mm |
| H2 | 26 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Brass bright |
| Class name | PLUS |
