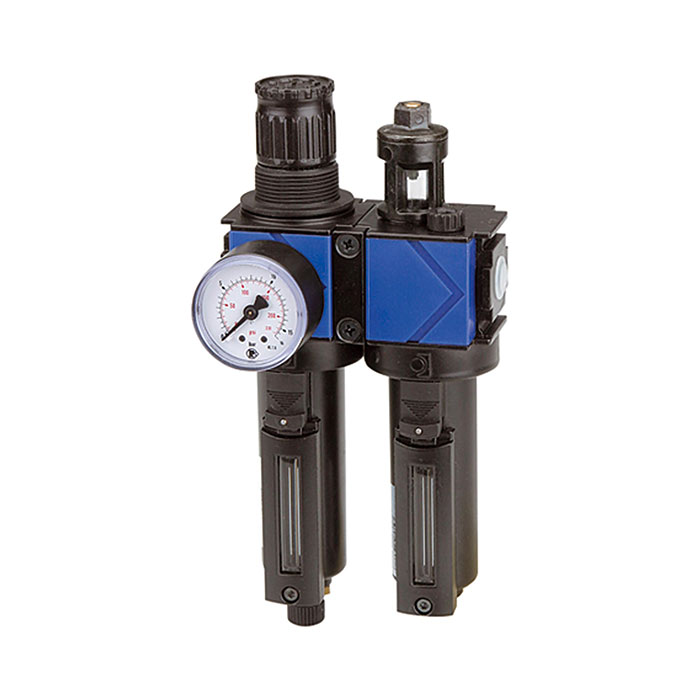

RIEGLER Service unit 2-part »variobloc«, Metal container, Size 2, G 1/2
Type number: VW 24 M
EAN: 4047322170277
Wartungseinheit 2-tlg. »variobloc« mit Metallbehälter inkl. Sichtrohr und Tropfaufsatz Metall, BG 2, G 1/2, PE max. 20 bar
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM |
| Thread | G 1/2 |
| Flow rate | 3400 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 140 mm |
| B | 273 mm |
| C | 98 mm |
| Class name | PLUS |
