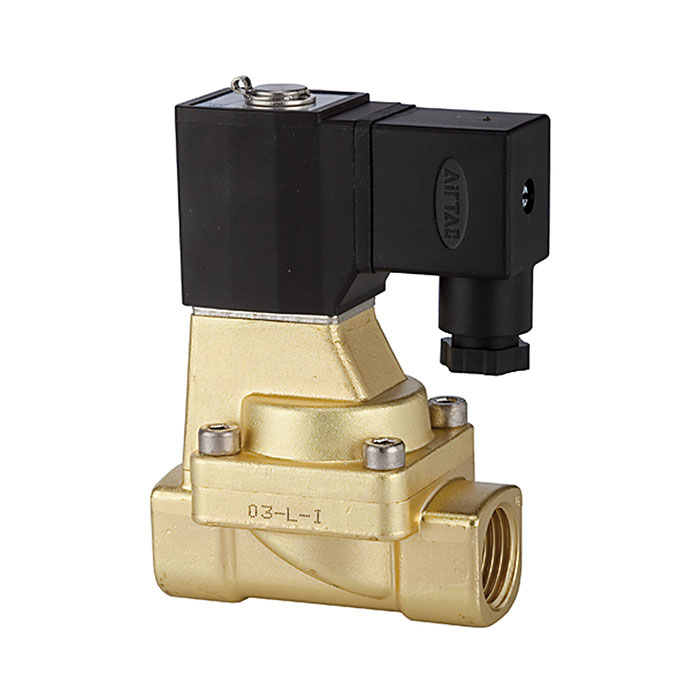

2/2-way solenoid valve NC, pilot operated, 24 V DC, G 1
Typennummer: MV 1553
EAN: 4047322325103
2/2-Wege-Magnetventil, Messing, NC, vorgesteuert, 24 V DC, Mediumstemperatur max. 80 °C / 90 °C, G 1, PN 0,5 - 10 bar
| Housing | Messing |
| Sealing material | FPM |
| Protection class | IP 65 |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Interior parts | Edelstahl |
| Valve seat | Messing |
| Thread | G 1 |
| Thread standard | G-Gewinde nach DIN EN ISO 228-1 |
| NW | 25 |
| Design | 3 |
| A | 70 mm |
| B | 92 mm |
| C | 124 mm |
| REACH SVHC1 Substance Name | Blei |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS konform |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Artikel 4, Absatz 1, Anhang 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | enthält SVHC Stoff |
| Share of SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Proportion of SVHC substance in SCIP | >= 0,1 % in w/w |
| Material identification | keine |
| Class name | EASY |
