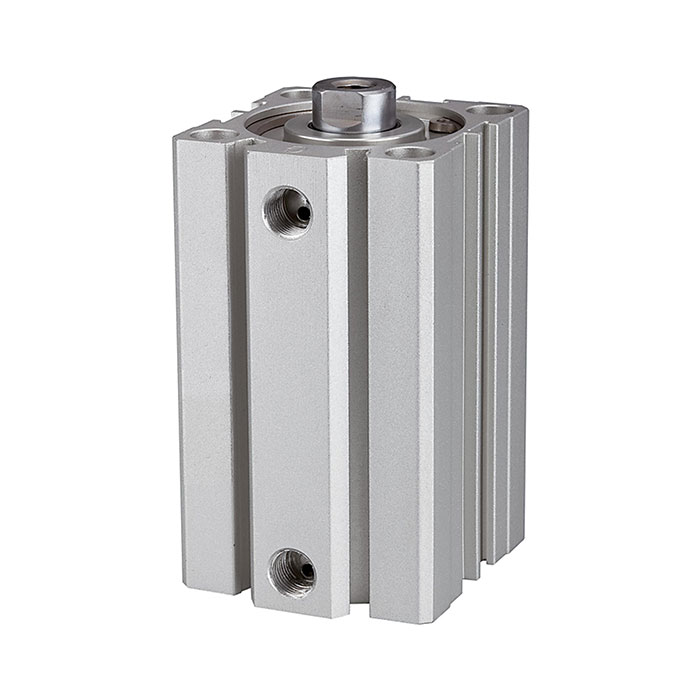

RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 20, G 1/4
Type number: 12.DMI.50020
EAN: 4047322318181
Kurzhubzylinder »ACQ« doppeltwirkend, Magnet, IG, Kolben-Ø 50, Hub 20, Anschluss G 1/4, Arbeitsdr. 1-10 bar, Temp. -20°C bis 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Serie ACQ |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 50 mm |
| Design | 3 |
| Function | doppeltwirkend |
| Stroke | 20 mm |
| Piston rod Ø | 20 mm |
| Piston rods IG | M10x1.5 |
| Connection | G 1/4 |
| Piston rod | Stahl, hartverchromt |
| Piston | Aluminium |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
