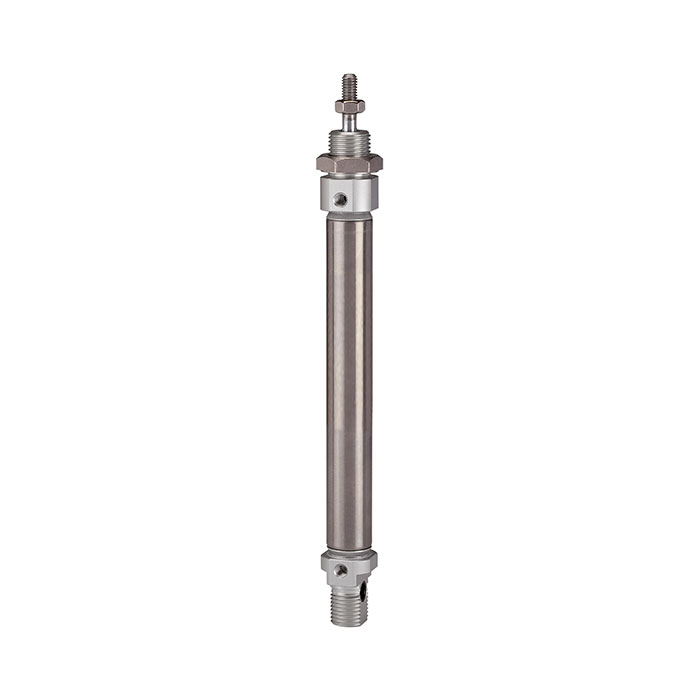

RIEGLER Round cylinder »MI« double-acting, Piston Ø 16, Stroke 75, M5x0.8
Type number: 11.DM.16075
EAN: 4047322314145
Rundzylinder »MI« ISO 6432, doppeltwirk. Magnet, Kolben-Ø 16, Hub 75, Anschluss M5x0,8, Arbeitsdr. 1-10 bar, Temp. -20°C bis 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Serie MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Typ CA |
| Piston Ø | 16 mm |
| Function | doppeltwirkend |
| Stroke | 75 mm |
| Piston rods AG | M6x1.0 |
| Piston rod Ø | 6 mm |
| Connection | M5x0.8 |
| Piston rod | Edelstahl 1.4301 |
| Piston | Aluminium |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 6432 |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
