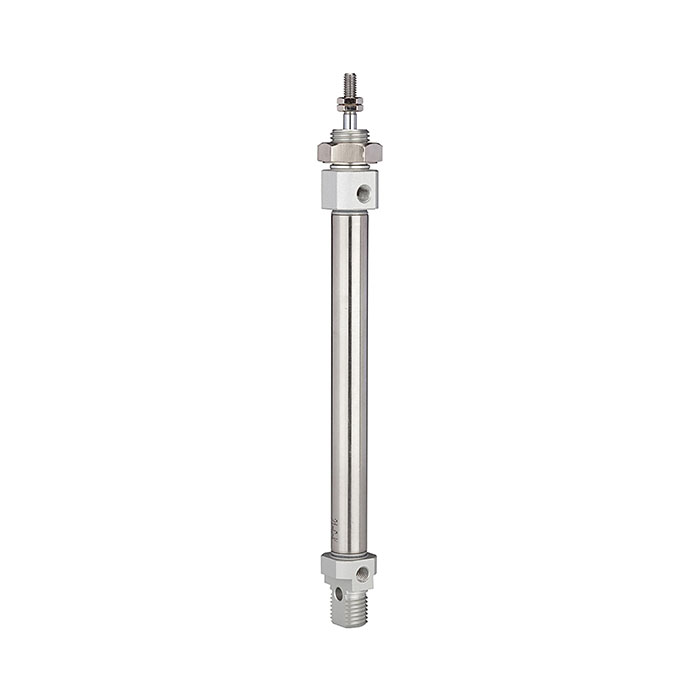

RIEGLER Round cylinder »MI« double-acting, Piston Ø 10, Stroke 75, M5x0.8
Type number: 11.DM.10075
EAN: 4047322313780
Rundzylinder »MI« ISO 6432, doppeltwirk. Magnet, Kolben-Ø 10, Hub 75, Anschluss M5x0,8, Arbeitsdr. 1-10 bar, Temp. -20°C bis 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Serie MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Typ CA |
| Piston Ø | 10 mm |
| Function | doppeltwirkend |
| Stroke | 75 mm |
| Piston rods AG | M4x0.7 |
| Piston rod Ø | 4 mm |
| Connection | M5x0.8 |
| Piston rod | Edelstahl 1.4301 |
| Piston | Edelstahl 1.4305 |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 6432 |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
