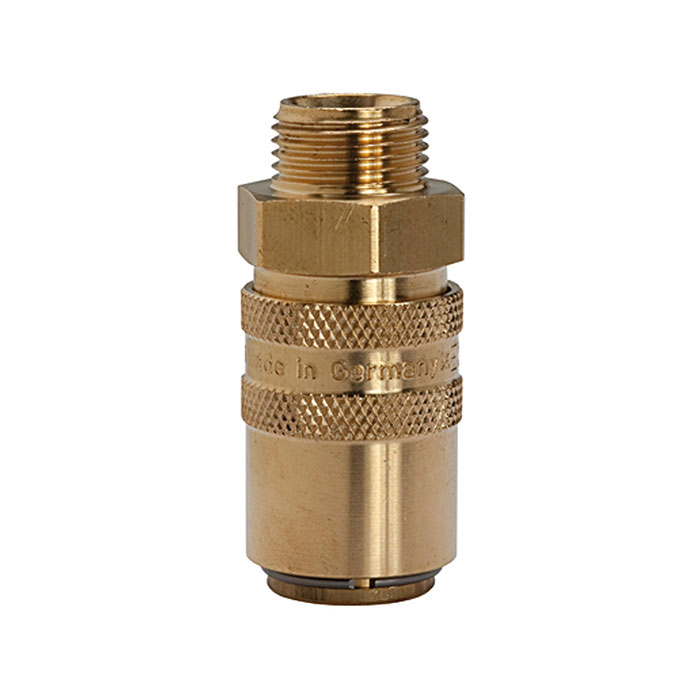

RIEGLER Tempered coupling DN 9, ET, Blocking valve, Brass, G 3/8 straight
Typennummer: 280.22
EAN: 4047322258777
Temperierkupplung DN 9, Außengewinde, Absperrventil, MS, G 3/8 gerade, PN max. 15 bar, Mediums-/Umgebungstemp. -20 °C bis 160 °C
| Medium | Air, water, oil, vacuum |
| Connection thread | G 3/8 straight |
| Sealing material | FKM (PTFE-coated) |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 160 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 160 °C |
| Material | Brass 2.0401 |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Snap ring | Edelstahl |
| SW | 22 mm |
| Length | 53.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | FLEX |
