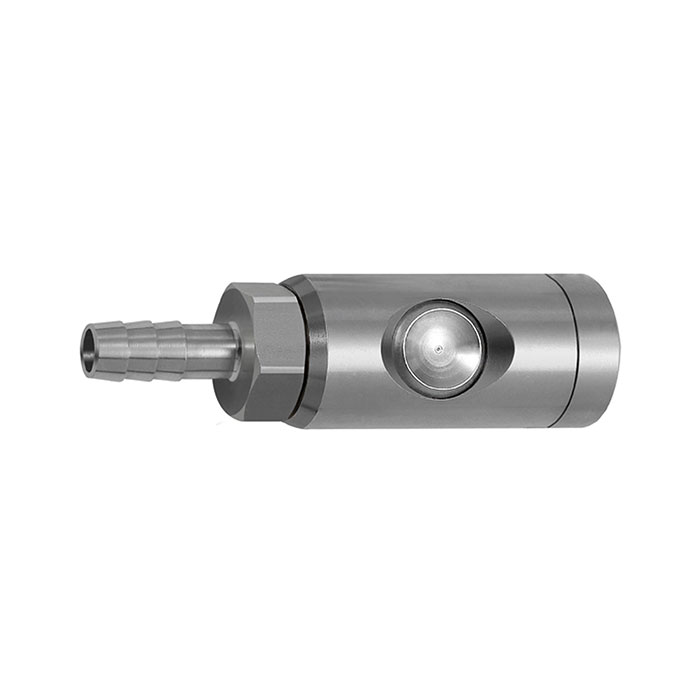

RIEGLER Pushbutton safety coupling I.D. 7.4, rotating, 1.4404, I.D. 13
Type number: 244.33-DES
EAN: 4047322349932
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Druckknopf-Sicherheitskupplung NW 7,4, drehbar, ES 1.4404, Tülle LW 13, Betriebsdr. max. 12 bar, Med.-/Umgeb.temp. -20°C bis 150°C
| Housing | Stainless steel 1.4404 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 150 °C |
| Flow rate | 1600 l/min (air) |
| Interior parts | Stainless steel 1.4404 |
| Threaded piece | Stainless steel 1.4404 |
| Valve | Edelstahl 1.4404 |
| Button | Stainless steel 1.4404 |
| SW | 21 mm |
| NW | 7.4 |
| Length | 88.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | LW 13 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | STAINLESS STEEL |
