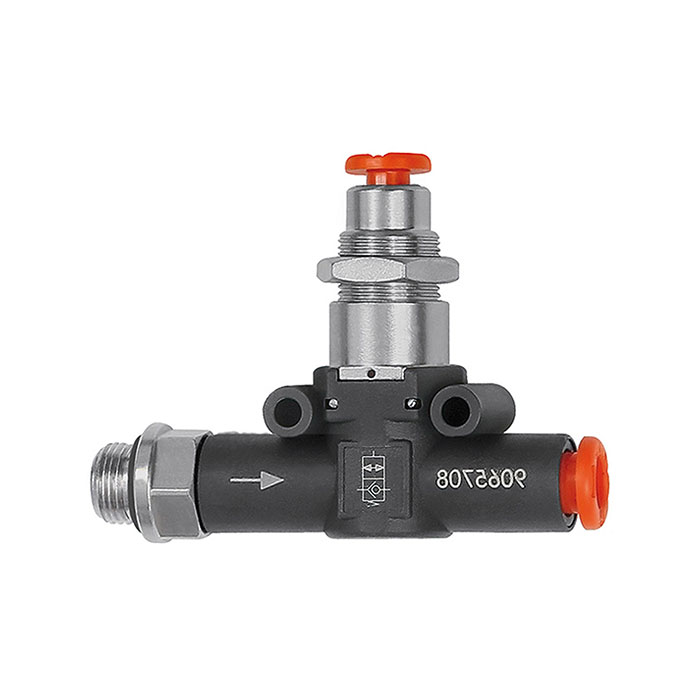

RIEGLER Pneumatically releasable check valve, thread - hose, G 1/4 hose 6
Type number: 494.014-6
EAN: 4047322390187
Pneumatisch entsperrbares Rückschlagventil »lineonline«, Gewinde - Schlauch, G 1/4, für Schlauch-Ø 6 mm, Betriebsdruck max. 10 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Pilot air connection | 4 mm |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/4 |
| for hose Ø | 6 mm |
| A | 61.5 mm |
| B | 43.2 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 400 Nl/min |
| I | 14.6 mm |
| Class name | PLUS |
