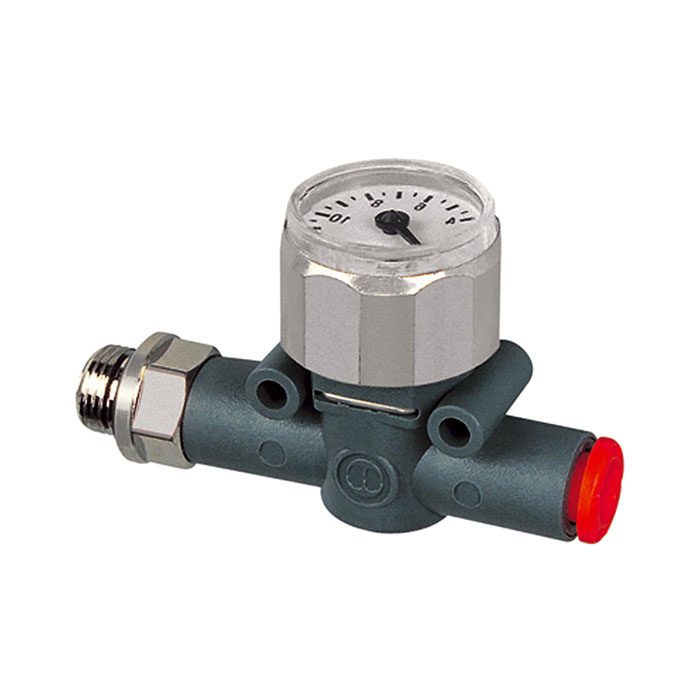

RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/8, hose Ø 8
Type number: 461.018-8
EAN: 4047322091541
Manometer »lineonline«, Gewinde (Eingang) - Schlauch (Ausgang), G 1/8, für Schlauch-Ø 8 mm, Betriebsdruck max. 12 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 12 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Measuring accuracy | +/- 4 % of the full scale value |
| Scaling | 0 - 12 bar |
| Thread | G 1/8 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 12 |
| for hose Ø | 8 mm |
| A | 66.4 mm |
| B | 41.1 mm |
| I | 18.7 mm |
| Class name | PLUS |
