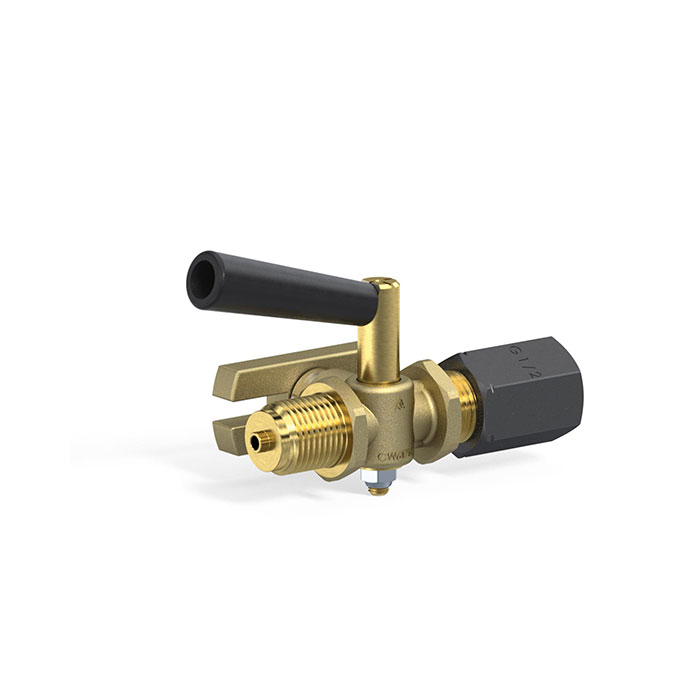

RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2
Typennummer: 9023/M
EAN: 4047322123006
Manometer-Absperrhahn, Zapfen - Spannmuffe, Geh. MS blank, Spannmuffe Stahl, G 1/2, PN 25 bar, SW 27, max. 50 °C, Prüfflansch 40x5
| Temperature range max. | 50 °C |
| Housing | Brass bright |
| Area of application | for all pressure gauges with flat sealing ring to DIN 16258 |
| Hand lever | Plastic |
| Thread | G 1/2 |
| SW | 27 mm |
| PN | 25 bar |
| Test flange | 40x5 |
| Execution | Spigot / clamping sleeve, with test flange 40x5 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Clamping sleeve | Stahl phosphatiert |
