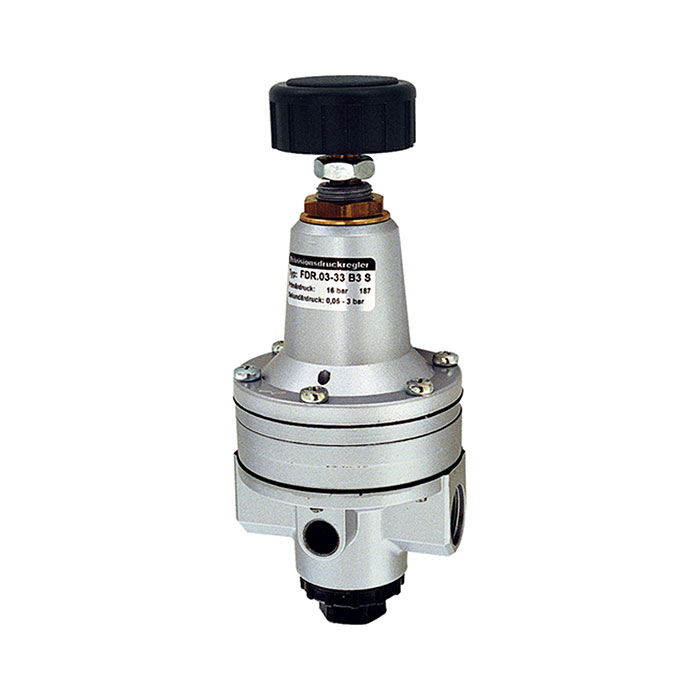

RIEGLER Precision pressure regulator, G 3/8, Control range 0.05 - 3 bar
Typennummer: 637.41
EAN: 4047322108133
Präzisionsdruckregler o. Mano., G 3/8, Regelbereich 0,05-3 bar, PE max. 16 bar, Mediums-Umgebungstemp. max. 60°C, hoher Durchfluss
| Inlet pressure max. | 16 bar |
| Medium | ultra-fine filtered, unlubricated compressed air (0.01 µm) |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Intrinsic air consumption max. | 1.5 - 6 l/min, depending on inlet pressure and control range |
| Medium temperature min. | -35 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -35 °C |
| Ambient temperature max. | 60 °C |
| Pressure gauge connection | G 1/4 |
| Thread | G 3/8 |
| Flow rate | 3000 l/min |
| Control range min. | 0.05 bar |
| Control range max. | 3 bar |
| A | 82 mm |
| B | 202.5 mm |
| C | 43.5 mm |
| D | 159 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 3/8 (for silencer mounting) |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I. 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | FLEX |
