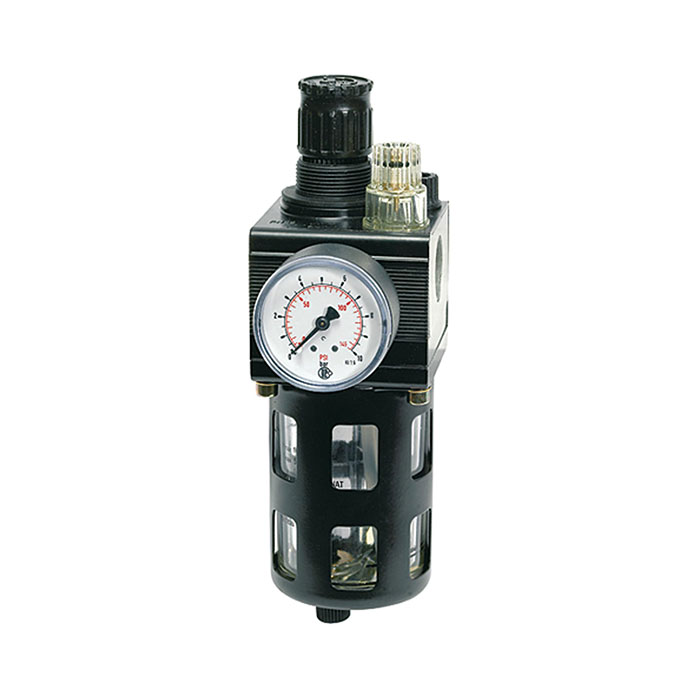

RIEGLER Combi-service unit, Protective cage, Size 1, G 1/2, 0.5 - 10 bar
Type number: 810.07 S
EAN: 4047322119467
Kombi-Wartungseinheit mit PC-Behälter, Schutzkorb und Handablassventil, BG 1, G 1/2, PE max. 16 bar, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | PA |
| Thread | G 1/2 |
| Flow rate | 1520 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | Manual drain valve |
| BG | 1 |
| A | 65 mm |
| B | 217 mm |
| C | 68.5 mm |
| Class name | PLUS |
