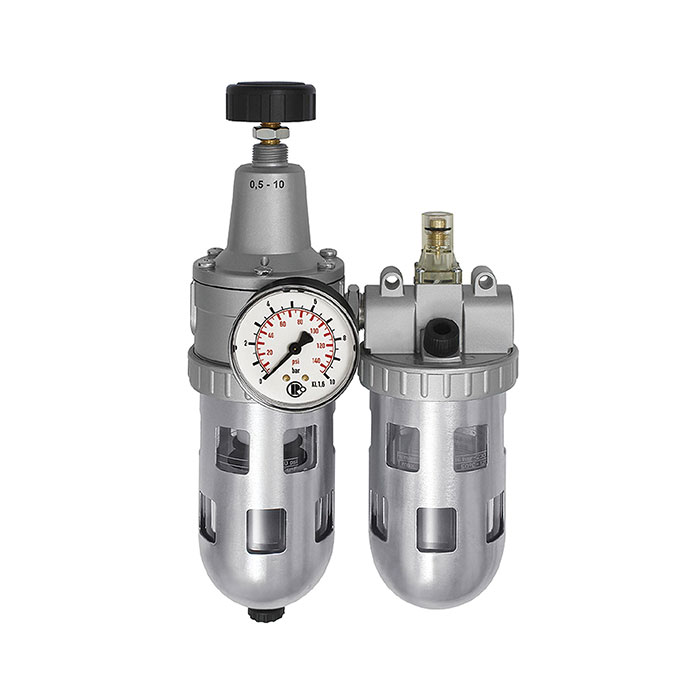

RIEGLER Service unit 2-part »Standard«, Protective cage, Size 1, G 1/4
Typennummer: 825 S
EAN: 4047322120777
Wartungseinheit 2-tlg. »Standard«, PC-Behälter und Schutzkorb, BG 1, G 1/4, Eingangsdruck max. 16 bar, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Dropper attachment | PA |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 600 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 6 |
| Pressure gauge Ø | 50 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 117 mm |
| B | 236.2 mm |
| C | 106.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6b-II, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
