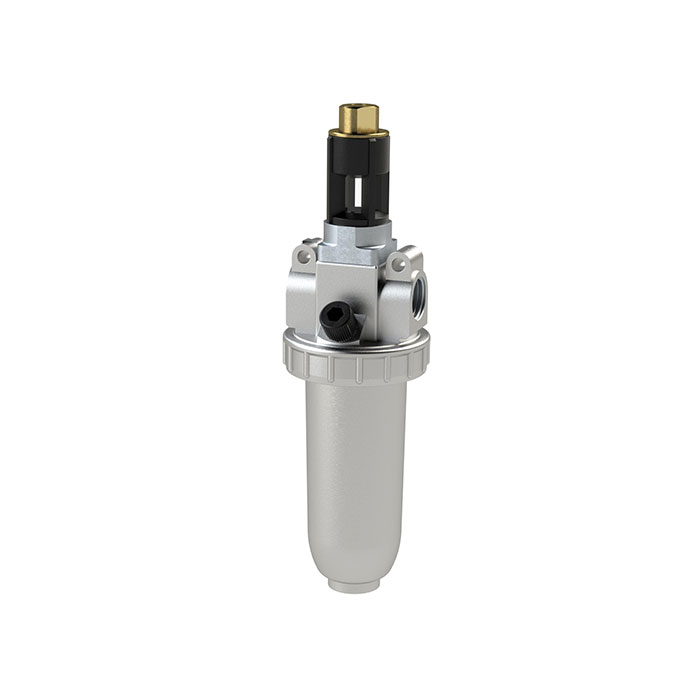

RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 1/2
Typennummer: 760 M
EAN: 4047322117371
Nebelöler »Standard« mit Metallbehälter und Tropfaufsatz Metall, BG 3, G 1/2, PE max. 25 bar, Med.-Umgebungstemp. max. 60 °C
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Dropper attachment | Zink-Glas-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 4000 l/min |
| DN | 15 |
| BG | 3 |
| A | 79 mm |
| C | 55 mm |
| D | 157 mm |
| Class name | EASY |
