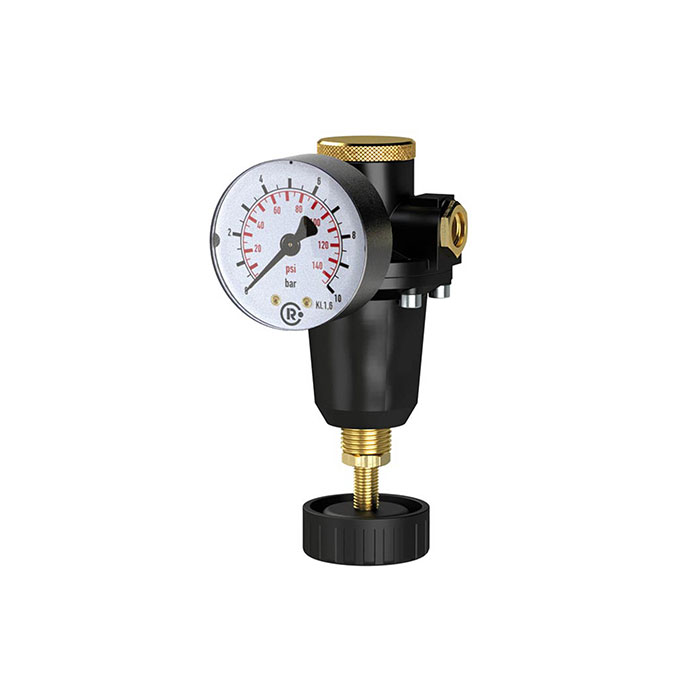

RIEGLER Constant pressure regulator, Size 1, G 3/8, 0.5 - 6 bar
Type number: 737.312
EAN: 4047322115278
Konstant-Druckregler inkl. Manometer, BG 1, G 3/8, PE max. 25 bar, Mediumstemperatur max. 90 °C, Regelbereich 0,5 - 6 bar
| Inlet pressure max. | 25 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | andere |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| Thread | G 3/8 |
| Flow rate | 2500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 6 bar |
| DN | 10 |
| BG | 1 |
| A | 70 mm |
| B | 165 mm |
| C | 33 mm |
| D | 132 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
