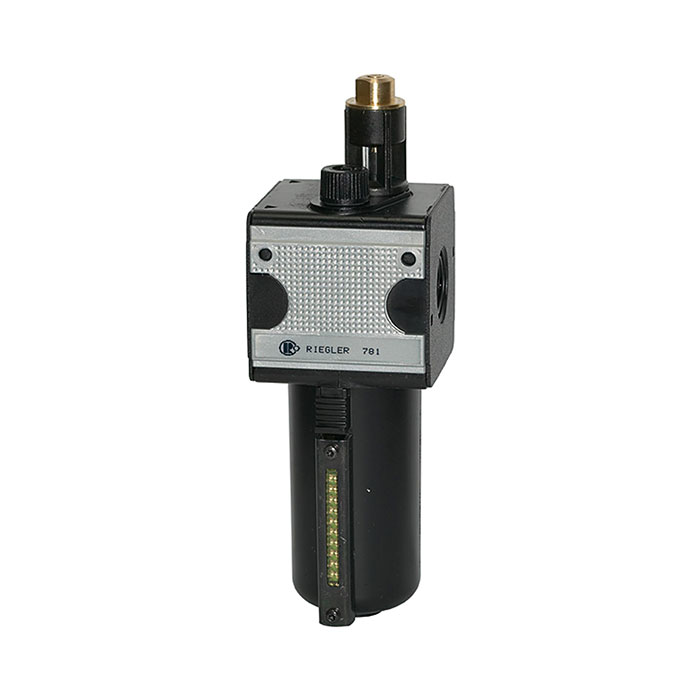

RIEGLER Mist oiler »multifix«, with metal container, Size 3, G 1/2
Type number: L 33 M-SR
EAN: 4047322155755
Nebelöler »multifix« mit Metallbehälter, Sichtrohr, Tropfaufsatz Metall, BG 3, G 1/2, PE max. 20 bar, Med.-Umgeb.temp. max. 60 °C
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Dropper attachment | Zink-Glas-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 5000 l/min |
| DN | 15 |
| BG | 3 |
| A | 68.8 mm |
| B | 213 mm |
| C | 79.3 mm |
| D | 133.7 mm |
| Class name | PLUS |
