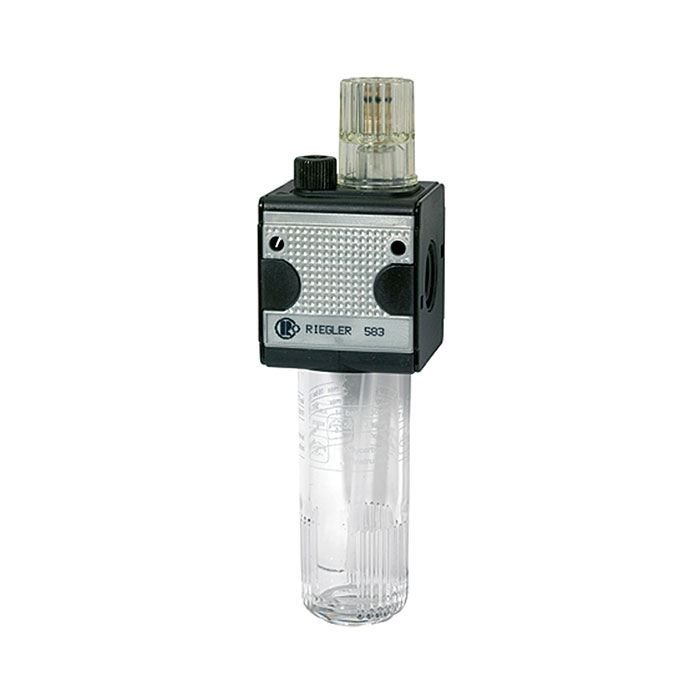

RIEGLER Mist oiler »multifix« with polycarbonate container, Size 5, G 1
Typennummer: L 55 K
EAN: 4047322155816
Nebelöler »multifix« mit Polycarbonatbehälter, BG 5, G 1, Eingangsdruck max. 16 bar, Mediums-Umgebungstemperatur max. 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 19000 l/min |
| DN | 25 |
| BG | 5 |
| A | 100 mm |
| B | 324.3 mm |
| C | 82.7 mm |
| D | 241.6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6b-II, 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| REACH SVHC2 Substance Name | Melamine |
