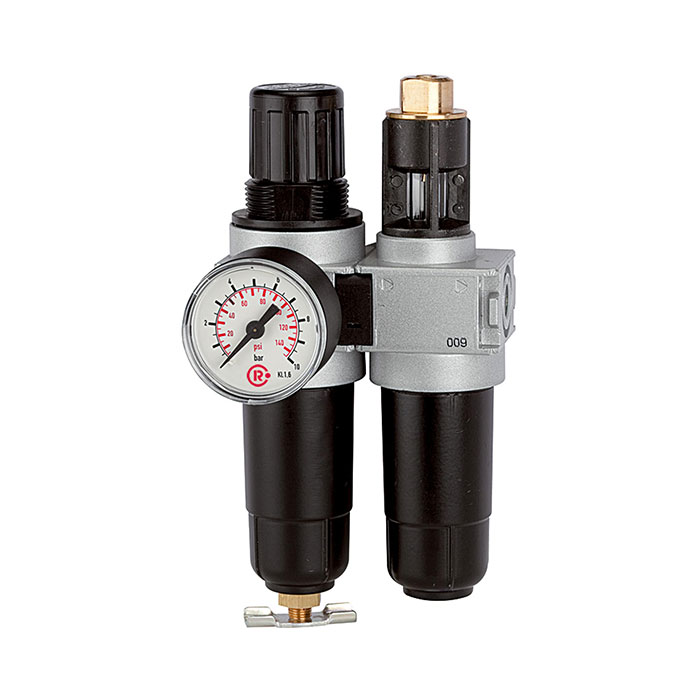

RIEGLER Service unit 2-part »multifix-mini«, Metal container, G 1/4
Type number: CL 06 M
EAN: 4047322124829
Wartungseinheit 2-tlg. »multifix-mini« mit Metallbehälter, BG 0, G 1/4, Eingangsdruck max. 12 bar, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 12 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Container | Metal container |
| Filter fineness | 5 µm |
| Dropper attachment | Zink-Glas-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/4 |
| Flow rate | 700 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 5 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 0 |
| A | 80 mm |
| B | 162 mm |
| C | 63 mm |
| D | 99 mm |
| Class name | PLUS |
