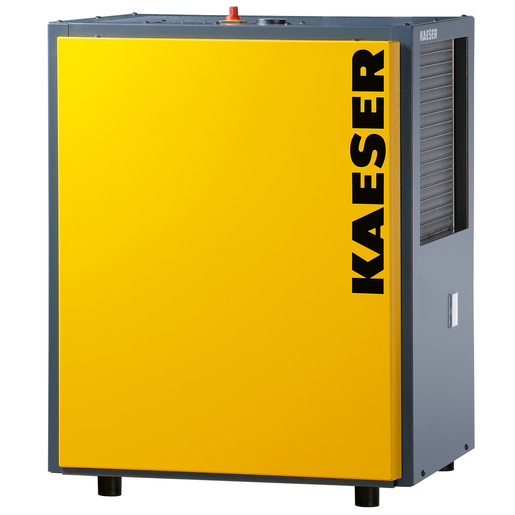

KAESER Energy-saving refrigeration dryer model TB 19 SECOTEC

https://www.filcom-technik.de/web/image/product.template/3642/image_1920?unique=298633d

Sparsamer Kältetrockner zum Trocknen von Druckluft bis zu einem Drucktaupunkt vom 3 °C. Einsatz in einer Umgebungstemperatur bis +43°C. Großer Kondensatabscheider und elektronischer Kondensatableiter ECO-DRAIN

Artikel-Nr.: 1.2460.0 wurde ersetzt durch Artiktel-Nr. : 1.2460.1

3,782.42 € 3782.42 EUR 3,782.42 € VAT Included

4,890.00 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE
KAESER Kompressoren SE

KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.


Product no. :
1.2460.1
Weight :
92.00 kg
Delivery area :
Germany

Sensational savings experts with a stable pressure dew point

SECOTEC refrigeration dryers (compressed air dryers) from the TA-TE series dry compressed air down to a pressure dew point of 3 °C, thanks to highly efficient accumulator control that adapts to demand and is therefore particularly economical. A generously dimensioned cold accumulator ensures gentle operation and a stable pressure dew point.

- Enormous savings potential in partial load operation and during work breaks
- Particularly robust and low-maintenance system design

Your advantages

Energy saving: Thanks to energy-saving control, excess cooling capacity can be temporarily stored in the thermal store during partial load operation and retrieved for drying without consuming electricity.
Lasting reliability: The high-quality refrigeration circuit of the SECOTEC refrigeration dryers allows safe use up to an ambient temperature of +43 °C. The large condensate separator and the ECO-DRAIN electronic condensate drain ensure reliable removal of condensate in all load phases. The electrical design complies with the EN 624-1 standard
Ingeniously service-friendly: The housing design, optimized for easy access to all parts, significantly reduces labour costs during maintenance and inspection work.
Optional version with potential-free contacts available

Volume flow (m³/min) 2,10
Pressure dew point (°C) 3
Pressure loss (bar) 0,19
Electrical power consumption at 100% Vol. (kW) 0,44
Electrical power consumption at 50% Vol. (kW) 0,24
Electrical power consumption at 10% Vol. (kW) 0,13
Min. overpressure (bar) 3
Max. Overpressure (bar) 16
Min. ambient temperature (°C) 3
Max. Ambient temperature (°C) 43
Max. Compressed air inlet temperature (°C) 55
Width (mm) 620
Depth (mm) 540
Height (mm) 963
Weight (kg) 108
Compressed air connection G 1
Condensate drain connection G 1/4
Electrical supply 230 V / 1 Ph / 50 Hz
Refrigerant R-513A
Refrigerant charge (kg) 0,56
CO2 equivalent (tonnes) 0,35
Global warming potential GWP 631
Energy-saving control Kältespeicher
