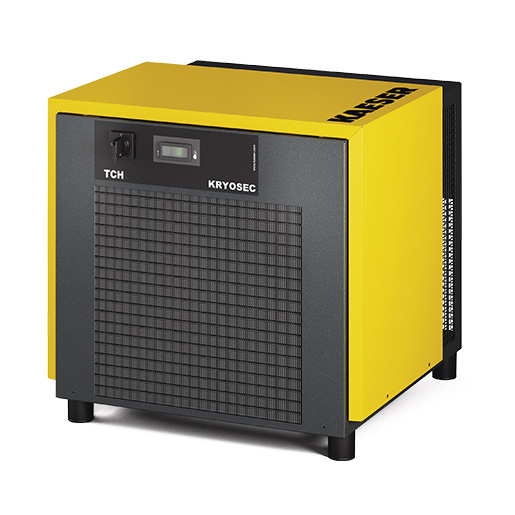

KAESER Refrigeration dryer model KRYOSEC TCH 27
Kompakt-Kältetrockner mit zuverlässigem Feuchteschutz bis +50 °C. Das Edelstahl-Wärmetauschersystem sorgt für geringen Druckverlust, während das wartungsarme Design einen wirtschaftlichen Betrieb ermöglicht. Dank der kompakten Bauweise sind sie flexibel an Einsatzorten wie Maschinenbühnen, Arbeitsplattformen oder Wänden installierbar.
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
KAESER refrigeration dryer (hot gas bypass control)
KRYOSEC - Compact refrigeration dryers for reliable drying
KRYOSEC refrigeration dryers offer high-quality industrial quality "Made in Germany". They ensure reliable compressed air drying at ambient temperatures of up to +50 °C. With low pressure loss and low-maintenance design, they are economical to operate and are characterized by their compact size. The KRYOSEC refrigeration dryers cool the humid compressed air in a high-quality heat exchanger system made of stainless steel plates. The electronic condensate drain ECO-DRAIN ensures efficient condensate disposal. With their high-quality design and compact dimensions, they are ideal for decentralized installations on machines that require high-quality treated compressed air.
Performance parameters for KRYOSEC:
- Volume flow: 0.35 to 4.50 m³/min
- Operating pressure: max. 16 bar
with climate-friendly refrigerant R513a
Low differential pressure
Low overall height and high floor clearance
Matching: the AQUAMAT oil/water separator
Treat condensate with the AQUAMAT oil-water separator before discharging it into the sewage system in a legally compliant and cost-effective manner.
| Volume flow (m³/min) | 2,60 |
| Pressure dew point (°C) | 3 |
| Pressure loss (bar) | 0,18 |
| Electrical power consumption at 100% Vol. (kW) | 0,51 |
| Min. overpressure (bar) | 3 |
| Max. Overpressure (bar) | 16 |
| Min. ambient temperature (°C) | 3 |
| Max. Ambient temperature (°C) | 50 |
| Max. Compressed air inlet temperature (°C) | 60 |
| Width (mm) | 640 |
| Depth (mm) | 663 |
| Height (mm) | 609 |
| Compressed air connection | G 1 |
| Condensate drain connection | G 1/4 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,62 |
| CO2 equivalent (tonnes) | 0,39 |
| Global warming potential GWP | 631 |
| Weight (kg) | 56 |
